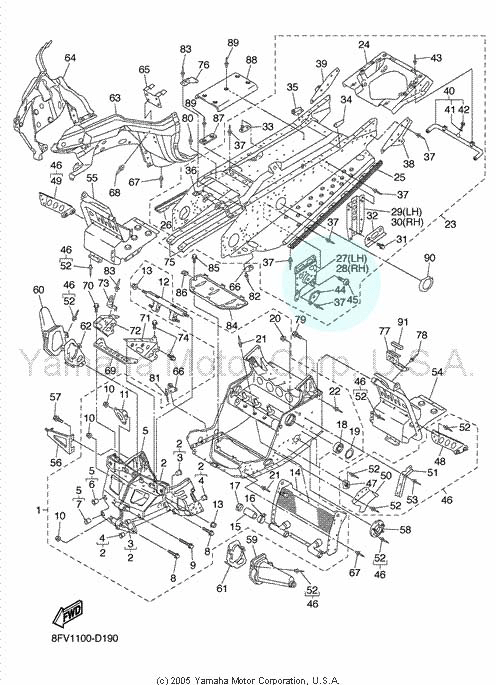

Item

Part #

Description

Notes

Req



1

8FA-21940-02-00

FRONT FRAME COMP.



1

2

8FA-W2197-00-00

.BULKHEAD



1

3

90381-15001-00

..BUSH, SOLID



2

4

90381-16001-00

..BUSH, SOLID



2

5

8FA-W2198-00-00

.BULKHEAD 2



1

6

90381-15001-00

..BUSH, SOLID



2

7

90381-16001-00

..BUSH, SOLID



2

8

95827-08060-00

.BOLT, FLANGE



3

9

95827-08065-00

.BOLT, FLANGE



1

10

95607-08200-00

NUT, SELF-LOCKING



4

11

8FA-2128A-00-00

.BRACKET, REGULATOR



1

12

8FG-21947-00-00

.BRACKET, STEERING 1



1

13

95607-10200-00

NUT, U FLANGE



4

14

8FA-12440-00-00

.HEAT EXCHANGER ASSY



1

15

8FA-12551-00-00

.HOSE 7



1

16

90467-28046-00

.CLIP



1

17

90450-35001-00

.HOSE CLAMP ASSY



1

18

93306-20650-00

.BEARING



1

19

99009-62500-00

CIRCLIP



1

20

95607-08200-00

NUT, SELF-LOCKING



1

21

90267-47195-00

.RIVET, BLIND



61

22

90267-48016-00

.RIVET, BLIND



6

23

8FU-21950-00-00

REAR FRAME COMP.



1

24

8FA-W2199-01-00

.REINEFORCEMENT, FRAME REAR 1



1

25

8FU-21926-00-00

.REINFORCEMENT, FOOTREST 1



1

26

8FU-21936-00-00

.REINFORCEMENT, FOOTREST 2



1

27

8FU-21943-00-00

.BRACKET, MAIN TRACK 1



1

28

8FU-21953-00-00

.BRACKET, MAIN TRACK 2



1

29

8FU-21944-00-00

.BRACKET, RR.TRACK SUSPENTI



1

30

8FU-21954-00-00

.BRACKET, RR.TRACK SUSPENTI



1

31

95817-10020-00

BOLT, FLANGE



4

32

8FU-21988-01-00

.PATCH 8



2

33

8CR-2194N-00-00

.BRACKET, FUEL TANK 1



2

34

8FA-2194X-00-00

.BRACKET 1



1

35

8FA-2195X-00-00

.BRACKET 2



1

36

8FA-2194H-01-00

.PROTECTOR, MUFFLER



1

37

90267-47195-00

.RIVET, BLIND

QTY:120

1

38

8FU-21963-00-00

.PATCH 3



1

39

8FU-21964-00-00

.PATCH 4



1

40

8FU-1241A-00-00

.HEAT EXCHANGER ASSY 4



1

41

90210-06006-00

WASHER, SEAL



1

42

95817-06016-00

BOLT, FLANGE



1

43

90267-48095-00

RIVET, BLIND



2

44

8FU-21919-00-00

.BRACKET, MAIN TRACK 3



2



45

92014-10020-00

.BOLT, BUTTON HEAD



2

46

8FU-W2195-00-00

FRAME CONNECTION KIT



1
