Carb Photos and Parts

by: NY_SXR700

TM Carb Exploded View

VM Carb Exploded View

I took photos the other day when I took my carbs apart. Lots of questions here about what is this and that on the carbs. I hope these can help clear up float height and slide heights as well at jets and how to get the needle out.

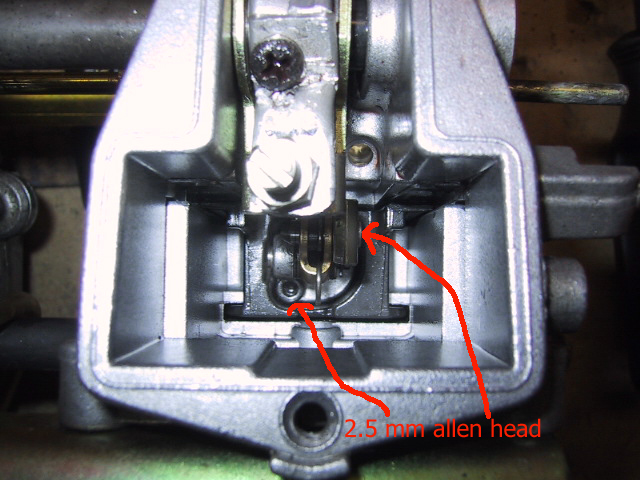

This first one is where the 2.5 mm Allen screws are for access to the needles. ( a ball head Allen works best here). Remove then and weasel out the slide assembly holder. The needle is under there with the 2 washers (don't loose them).

The slide height adjuster looks home made because it is. Mine snapped off while I was adjusting my slide height. I made a new one out of 1/4" tubing. Hammered it and tapped it. Lasted 3 weeks until I put the replacement in.

NY_SXR700 has attached this image:

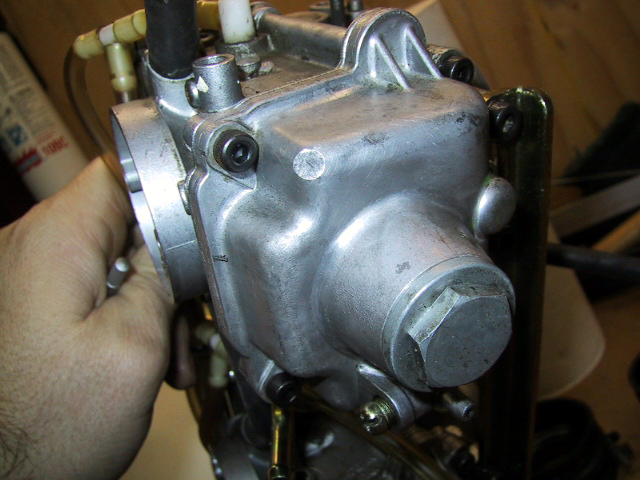

If you add spacers to the SX/R your carbs will rub on your steering column. here is what it looks like. I added 2 thick washers under my rear motor mount and put spacers under the front legs of my air box (all better now). Also I replaced every Phillips head screw on my rack with Allen head screws (for $8.00 total) I left 2 in the center carb at the top where the vent line rub on the bolt heads. Left the round head Phillips in for chaffing protection.

NY_SXR700 has attached this image:

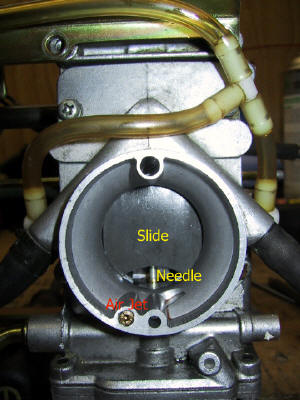

What things are on the front of the carb.

NY_SXR700 has attached this image:

what things are inside the carb

NY_SXR700 has attached this image:

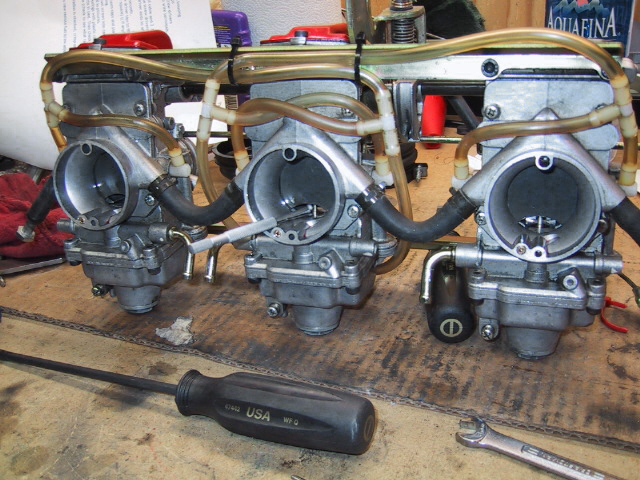

setting slide height. the center carb is the master.

NY_SXR700 has attached this image:

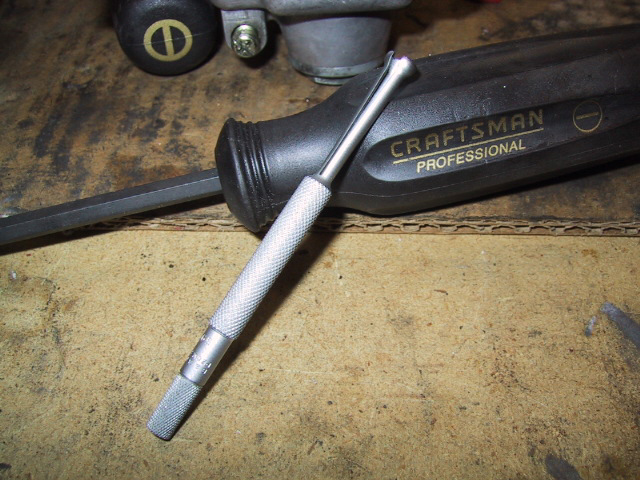

the tool I like for this job ( a good drill bit set will also work)

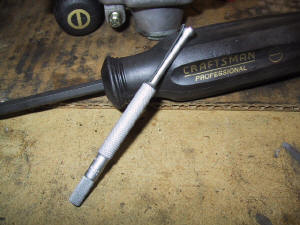

this is a Brown and Sharp small hole gauge tool

NY_SXR700 has attached this image:

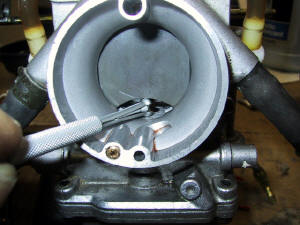

measuring the mag side

NY_SXR700 has attached this image:

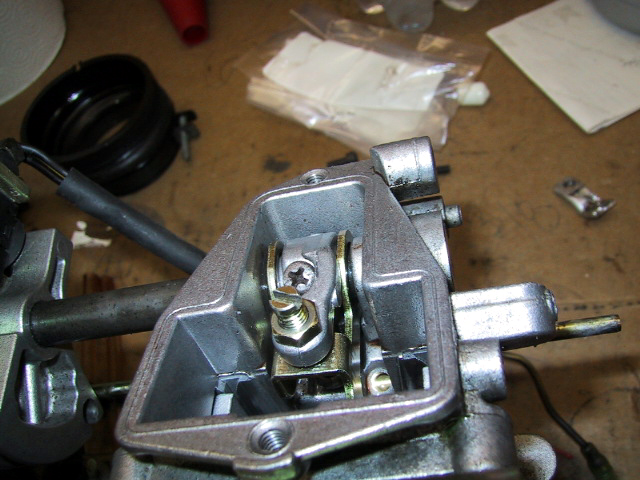

Turn this to adjust the slide height and make all 3 even and adjust to the center carb. Be careful turning this. Mine snapped and I did not put any force on it. I think it was fractured. My height on that carb was about 1/16" higher than the other two.

NY_SXR700 has attached this image:

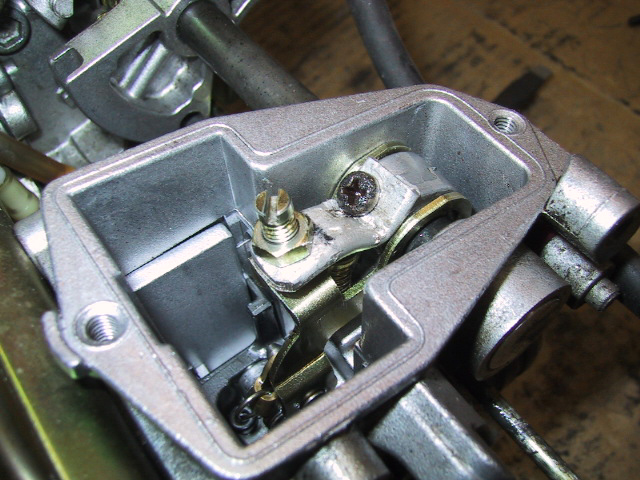

if you do break it off and I hope you don't. I was able to band aid mine back together here is a better shot of it. It lasted for the entire time I used it (over 500 miles).

NY_SXR700 has attached this image:
